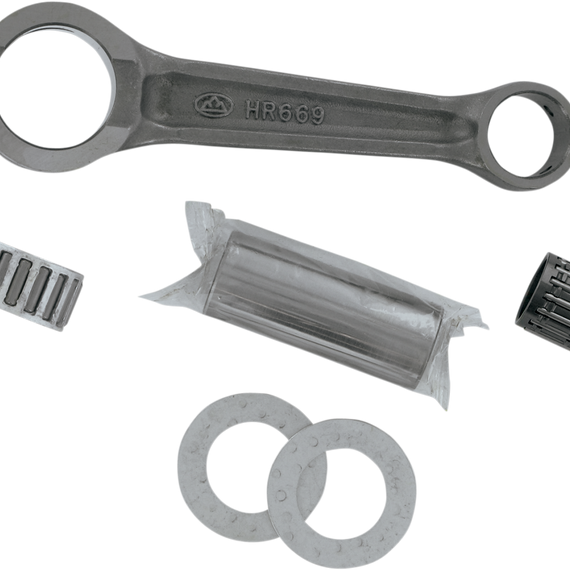

Connecting Rod
Caracteristicas: Heavy-duty OE replacement connecting rods Certified 8620 AISI steel provides superior strength Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc Feature the latest in caged needle roller bearing designs for high rpm longevity Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses Double honing produces an ultra-round bearing surface for reliability at high rpm Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers Compatible with Hot Rods and OE crankshafts Made in U.S.A.; connecting rod manufactured at Hot Rods Iowa facility
Peso: 1.13
Alto: 1.45
Largo: 6.85
Ancho: 2.36
Aditamentos:300 EXC : 2004-2005 250 SX : 2005-2008-2003-2007-2004-2006-2009-2015-2019-2011-2014-2013-2012-2017-2010-2020-2018-2016 300 XC : 2008-2007-2006-2005-2011-2004-2010-2009 250 XC : 2006-2007-2008-2011-2010-2009 300 MXC : 2005-2004-2008-2009-2010-2006-2007 250 EXC : 2005-2004-2006 300 XC-W : 2010-2008-2009-2011-2007-2006 250 XC-W : 2006-2007-2008-2009-2010-2011 250 XC TPI : 2020 300 XC TPI : 2020 250 XC-W TPI : 2018-2019-2020 Specs:Material: 8620 Steel
Product Name: Connecting Rod
Riding Style: Off-Road
Units: Kit
Peso: 1.13
Alto: 1.45
Largo: 6.85
Ancho: 2.36
Aditamentos:
Product Name: Connecting Rod
Riding Style: Off-Road
Units: Kit
