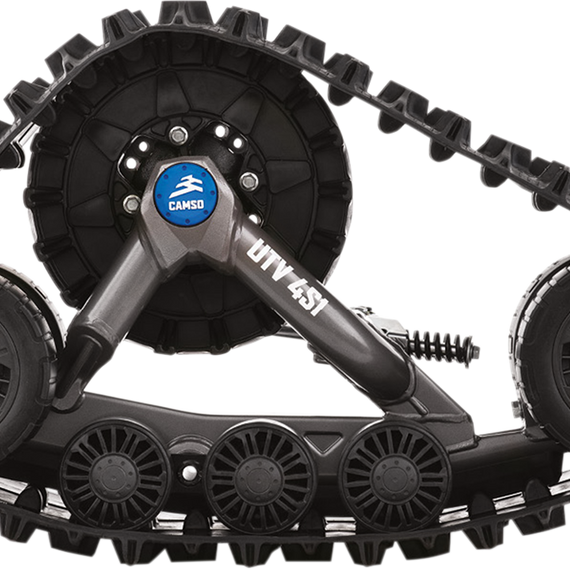

UTV 4S1 Track System
Caracteristicas: Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible Sturdier and more adjustable tensioner prevents critical part misalignment Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
Peso: 0.01
Alto: 0.1
Largo: 0.1
Ancho: 0.1
Aditamentos:Ranger 570 (Mid-Size) EFI : 2021-2020-2014-2016-2018-2017-2019-2015 Ranger Crew 570 4x4 : 2021-2017-2019-2020-2018-2015-2016-2014 Ranger Crew 570-6 (Full-Size) 4x4 : 2017-2019-2020-2021-2016-2018 Ranger Crew 570-4 4x4 : 2021-2016-2018-2019-2020-2017 Ranger Crew 570-4 Premium : 2021-2020 Ranger Crew 570-4 EPS 4x4 : 2018-2016-2017-2019 Ranger 570 Premium 4x4 : 2021 Ranger Crew 570 EPS 4x4 : 2015-2017-2018-2019-2016 Ranger 570 (Mid-Size) EPS : 2020-2019-2015-2016-2017-2018 Specs:Ground Surface: 1,62 m² (2520 square inch)
Model: UTV 4S1
Rear Height: 24-11/16"
Tooth Count: 15-18
Front Track Width: 12-1/2"
Product Name: Track System
Front Track Length: 98-1/2"
Lug Height: 1-1/4"
Type: Conversion
Units: Each
Front Height: 25"
Ground Clearance: +5"
Rear Track Length: 116-11/16"
Rear Track Width: 14"
Riding Style: Snow
Riding Style: UTV
Peso: 0.01
Alto: 0.1
Largo: 0.1
Ancho: 0.1
Aditamentos:
Model: UTV 4S1
Rear Height: 24-11/16"
Tooth Count: 15-18
Front Track Width: 12-1/2"
Product Name: Track System
Front Track Length: 98-1/2"
Lug Height: 1-1/4"
Type: Conversion
Units: Each
Front Height: 25"
Ground Clearance: +5"
Rear Track Length: 116-11/16"
Rear Track Width: 14"
Riding Style: Snow
Riding Style: UTV
